5 Axis CNC Machining: Precision, Complexity, and Efficiency in One Process

 In the field of advanced manufacturing, the need for higher accuracy, faster production, and the ability to create complex parts has led to the widespread use of 5 Axis CNC Machining. This cutting-edge technology is a significant upgrade from traditional 3-axis machining and is used in industries where precision and intricate geometries are crucial.

Whether it’s aerospace components, medical implants, or custom automotive parts, 5 axis CNC machining allows engineers and designers to bring complex ideas to life with remarkable precision and repeatability.

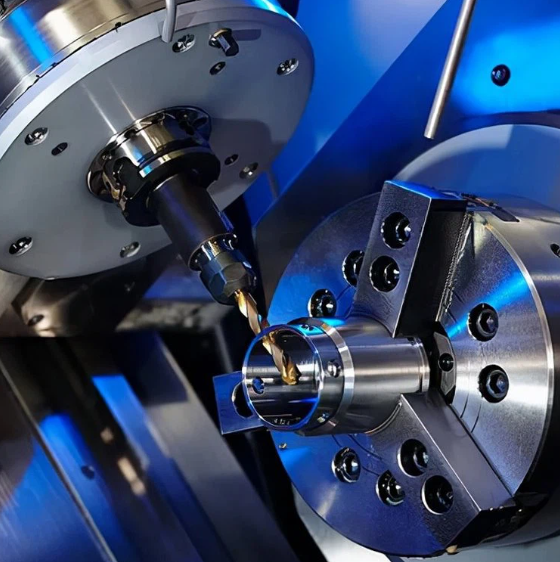

What is 5 Axis CNC Machining?

5 axis CNC machining refers to a computer-controlled manufacturing process where a part can be moved or rotated along five different axes simultaneously. These include the standard X, Y, and Z linear axes, plus two additional rotational axes—typically referred to as A (rotation around X-axis), B (rotation around Y-axis), or C (rotation around Z-axis), depending on the machine’s configuration.

This multi-directional approach allows the cutting tool to access all sides of a part in a single setup, which reduces production time, increases accuracy, and opens the door to more complex designs.

How 5 Axis CNC Machining Works

In a traditional 3-axis machine, the cutting tool moves in three directions: left-right (X), front-back (Y), and up-down (Z). This setup is suitable for simple parts but requires multiple setups for complex geometries, increasing time and the risk of human error.

5 axis CNC machining adds two additional rotary axes. There are two main types of 5 axis machine configurations:

1. Trunnion Style: The table rotates on two axes (A and C), while the tool remains stationary.
2. Swivel Head Style: The tool moves on two rotational axes (B and C), while the table remains fixed or moves linearly.

The toolpaths are programmed using advanced CAD/CAM software, allowing the cutter to approach the workpiece from any direction. This versatility results in faster processing and greater accuracy in producing intricate parts.

Benefits of 5 Axis CNC Machining

1. One-Setup Machining
2. One of the most significant advantages is the ability to machine complex parts in a single setup. This reduces the need for manual repositioning, minimizes errors, and cuts down on overall production time.
3. Improved Accuracy
4. Fewer setups mean fewer opportunities for misalignment. The machine can complete all operations in one go, ensuring high precision and consistency between parts.
5. Complex Geometries
6. 5 axis machining enables the creation of intricate shapes, undercuts, and deep cavities that would be impossible or extremely time-consuming with 3 axis machines.
7. Superior Surface Finish
8. The ability to orient the tool correctly reduces the need for excessive tool length and minimizes vibration. This leads to smoother surfaces and reduces the need for secondary finishing.
9. Faster Cutting Speeds
10. The optimal tool angle allows for higher feed rates and more efficient cutting, resulting in shorter production cycles and increased output.
11. Tool Life Extension
12. Better positioning of the tool reduces tool wear, extending the life of cutting tools and lowering costs.

Industries That Use 5 Axis CNC Machining

• Aerospace: Turbine blades, engine components, and structural frames require high precision and complex curvature.
• Medical: Surgical tools, prosthetics, and implants benefit from precision and bio-compatible shaping.
• Automotive: Custom parts, molds, and performance components are machined with tight tolerances and complex features.
• Defense: Weapons systems, radar components, and defense-grade materials require exact specifications.
• Energy: Components for wind turbines, oil exploration, and nuclear energy systems rely on durable and precisely machined parts.
• Die and Mold Making: Intricate molds for plastic injection and die casting are produced with perfect alignment and surface finish.

5 Axis CNC vs. 3+2 Axis Machining

A common confusion arises between simultaneous 5 axis machining and 3+2 axis machining. In 3+2 axis (also known as positional 5 axis machining), the machine positions the part using the two rotary axes, locks them in place, and then performs 3-axis machining.

In simultaneous 5 axis machining, all five axes move together during the cutting process, allowing for smoother cuts, better surface finishes, and more complex part geometries. Simultaneous machining is more advanced and typically more expensive but provides higher performance.

Challenges and Considerations

1. Cost
2. 5 axis CNC machines are more expensive than their 3-axis counterparts, both in terms of initial purchase and maintenance. Programming and tooling costs can also be higher.
3. Programming Complexity
4. Programming a 5 axis machine requires advanced CAM software and highly skilled operators. It also involves more complex simulations to avoid collisions and optimize paths.
5. Setup and Calibration
6. Accurate part fixturing and machine calibration are essential. Even minor misalignments can lead to defects, especially in high-precision industries.
7. Operator Skill Level
8. Due to the complexity of the process, highly trained machinists and programmers are needed to get the most out of the technology.

The Future of 5 Axis Machining

The demand for faster, more accurate, and more efficient manufacturing continues to rise. 5 axis machining will play a critical role in:

• Smart Manufacturing: Integration with AI, sensors, and data analytics for real-time monitoring and self-optimization.
• Micro-Machining: Creating extremely small, high-precision parts for electronics and medical devices.
• Hybrid Manufacturing: Combining additive (3D printing) and subtractive (CNC) processes in one machine for flexibility and reduced waste. Visit our website https://www.shdindustry.com/ for more details.

Conclusion

5 axis CNC machining is a powerful and versatile technology that has transformed the way complex parts are designed and produced. With unmatched flexibility, accuracy, and speed, it opens new doors for innovation across countless industries. While it demands a higher investment and skilled workforce, the returns in performance, precision, and productivity are undeniable.

As the demand for high-performance, custom components grows, 5 axis CNC machining will remain at the forefront of modern manufacturing, shaping the future one precise cut at a time.
